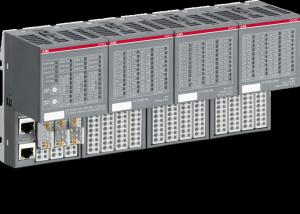

ABB CI581-CN 1SAP228100R0001 ,S500 Interface module, CANopen slave

Brand Name : ABB

Model Number : CI581-CN 1SAP228100R0001

Certification : CE

Place of Origin : China (CN)

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1

Delivery Time : 3-5 days

Packaging Details : New in original box

Brand : ABB

Model : CI581-CN

Product ID : 1SAP228100R0001

Long Descriptio : CI581-CN: S500 Interface module. CANopen slave. 4 AI: U, I, RTD. 2 AO: U, I. 8 DI: 24VDC. 8 DO: 24VDC 0.5A. Extendable by up to 10 I/O modules.

CN8 : 85389091

Catalog Description : Interface module. CANopen slave. 4 AI: U, I, RTD. 2 AO: U, I. 8 DI: 24VDC. 8 DO: 24VDC 0.5A (CI581-CN)

Contact Now

ABB CI581-CN 1SAP228100R0001 ,S500 Interface module, CANopen slave



General Information

Extended Product Type:
CI581-CN
Product ID:
1SAP228100R0001
ABB Type Designation:
CI581-CN
EAN:
4016779866262
Catalog Description:
Interface module. CANopen slave. 4 AI: U, I, RTD. 2 AO: U, I. 8 DI: 24VDC. 8 DO: 24VDC 0.5A (CI581-CN)
Long Description:
CI581-CN: S500 Interface module. CANopen slave. 4 AI: U, I, RTD. 2 AO: U, I. 8 DI: 24VDC. 8 DO: 24VDC 0.5A. Extendable by up to 10 I/O modules.


Ordering
CN8:
85389091
Invoice Description:
Interface module. CANopen slave. 4 AI: U, I, RTD. 2 AO: U, I. 8 DI: 24VDC. 8 DO: 24VDC 0.5A (CI581-CN)
Made To Order:
No
Minimum Order Quantity:
1 piece
Order Multiple:
1 piece
Selling Unit of Measure:
piece


Classifications
eClass:
27-24-26-07
ETIM 8:
EC001604 - Fieldbus, decentr. periphery - communication module
UNSPSC:
32151705


Dimensions
Product Net Weight:
0.137 kg
Product Net Depth / Length:
62 mm
Product Net Height:
76 mm
Product Net Width:
67.5 mm
Gross Weight:
0.161 kg
Package Level 1 Depth / Length:
84 mm
Package Level 1 Height:
72 mm
Package Level 1 Width:
71 mm
Package Level 1 Units:
1 carton

Technical

Technical

Function:
CANopen slave. 4 AI: U, I, RTD. 2 AO: U, I. 8 DI: 24VDC. 8 DO: 24VDC 0.5A
Number of Hardware Interfaces:
Industrial Ethernet 0
Other 1
Parallel 0
RS-232 0
RS-422 0
RS-485 0
Serial TTY 0
USB 0
Wireless 0
Analog Inputs:
4
Analog Outputs:
2
Number of Digital Inputs:
8
Number of Digital Outputs:
8
Number of Digital Configurable I/Os:
0
Input Voltage Type:
DC
Input Voltage (Uin):
24 V DC
Input Current:
5 mA
Delay Time (τ):
0.1 … 32 ms
Output:
Transistor
Output Voltage Type:
DC
Output Current:
0.5 A
Output Voltage Maximum:
20.4 … 28.8 V
Degree of Protection:
IP20
Supply Voltage:
20.4 ... 28.8 V DC

Environmental

SCIP:
9378345f-4dc7-415d-b557-0b3da711438f Germany (DE)
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Additional Information
Product Main Type:
CI581
Product Name:
Distributed Automation I/Os

-
